Drive:Bit Motor Controller for the BBC Micro:Bit (DriveBit)

Sale price Regular price £78.50
(inc VAT)
Stock: 18

Drive:Bit Robotics Controller for the BBC Micro:Bit

NB. BBC Micro:Bit is NOT included. Buy HERE if required

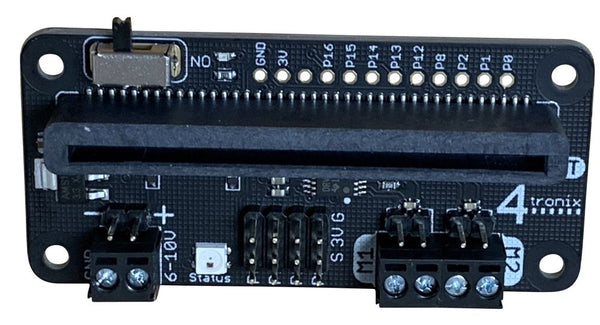

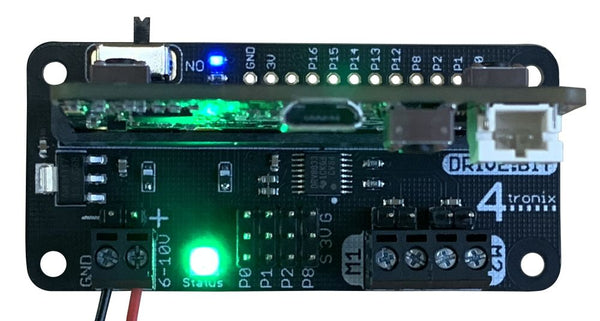

This affordable, ready-assembled robotics controller board is ready to accept your BBC Micro:Bit, battery power (6 to 10V) and motors of your choice to make your own DIY robot. Use a small box, ice-cream carton or similar to house everything and you can build a really affordable robot for your school, coding club or home.

Drive:Bit uses the ever popular DRV8833 motor driver which allows you to use most small motors that operate in the 6V - 9V range.

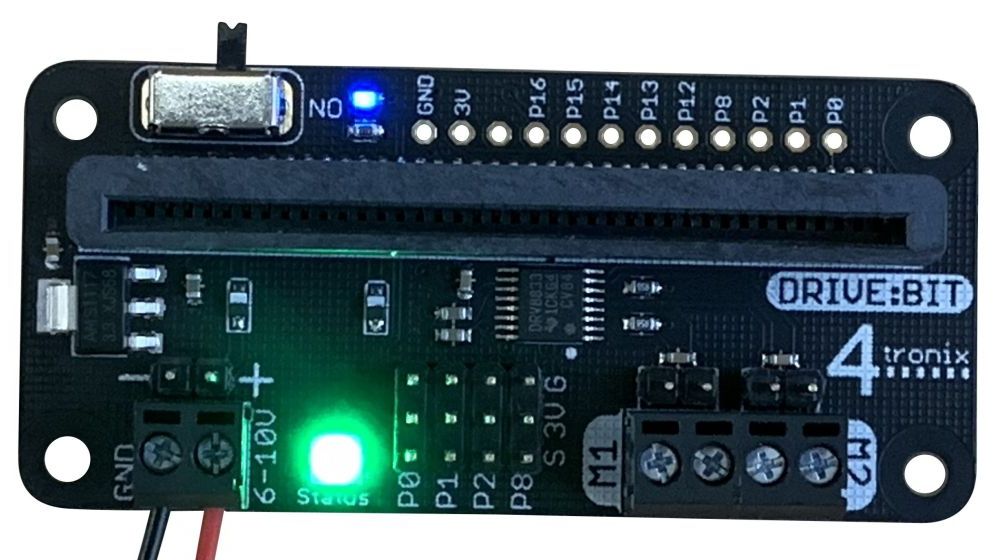

The Drive:Bit includes a power switch, indicator LED and features a single FireLed for status indication. All the useful Microbit pins are brought out to pads along the top of the board, with P0, P1, P2 and P8 being made available with 3-pin GVS (Ground, Voltage, Signal) headers, making it easy to connect to 3V sensors and even small micro servos

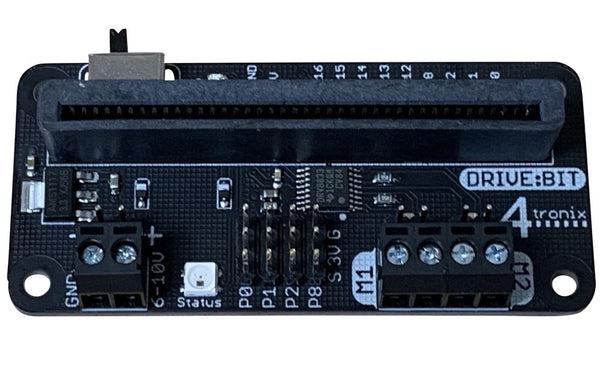

The motor and power connections can be made through the 2-pin screw terminals OR by using the 2-pin male headers behind each terminal

More details on our blog

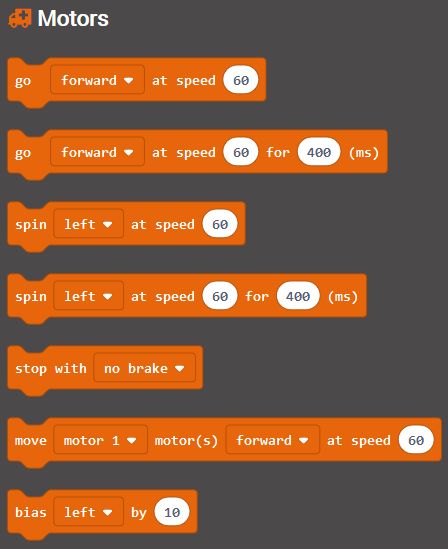

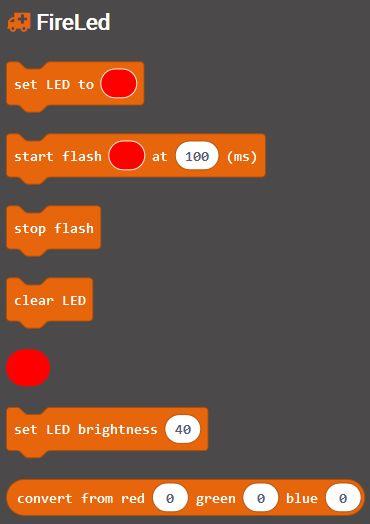

Search for "DriveBit" in Microsoft Makecode for the special extension that makes this really easy to use.

Super affordable even one-off, but you can buy in packs of 10 for even greater savings!

Specification

  • Dimensions: 65 x 30.5 mm (same size and mounting holes as a Raspberry Pi Zero)
  • Input voltage: 6V to 10V max with reverse polarity protection
  • Output Current: 1A per channel maximum
  • Status LED: FireLed on pin 16
  • 2 Motors: Pins 12/13 (Motor 1) and Pins 14/15 (Motor 2)
  • 3.3V Regulator 0.5A
  • Power from Microbit does not power the DriveBit. DriveBit is only powered from its power input
