4tronix Focus RFU Remote Control with ASCOM Driver for Focus Motors

(inc VAT)

Stock: 48

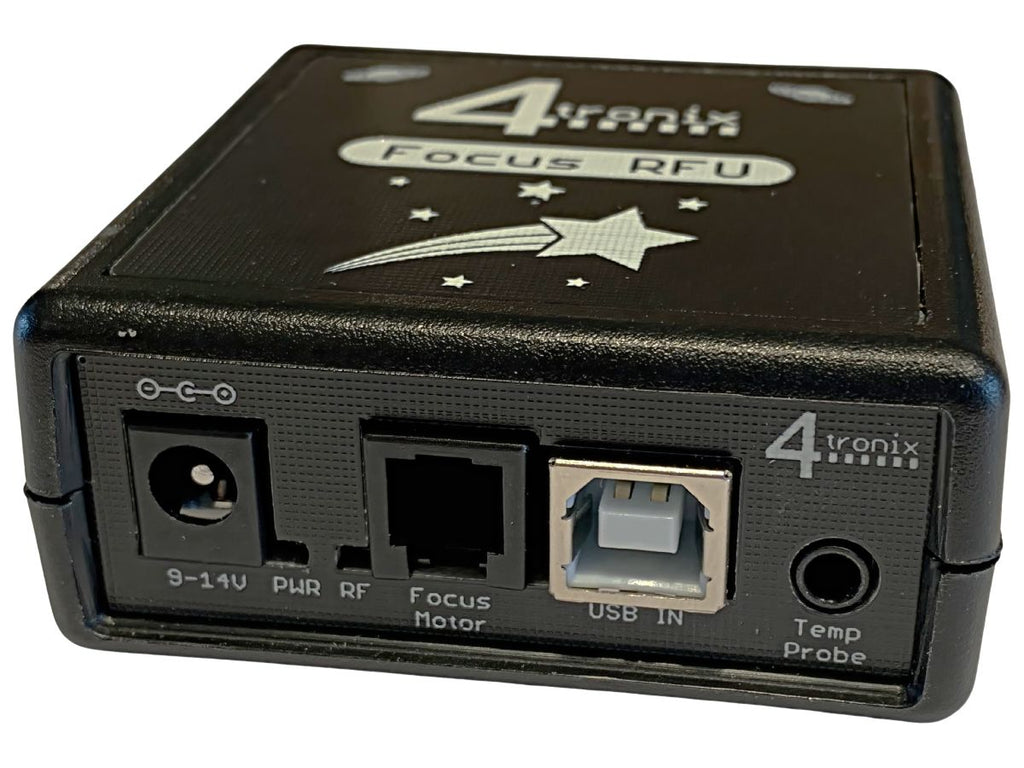

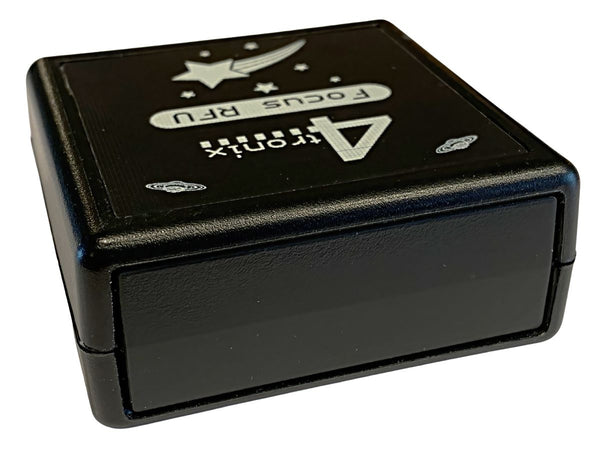

Focus RFU - Remote Control for Focus Motors

This product is designed to directly replace the handset in the Skywatcher Autofocuser kit and is the next step for our Focus RF unit, as this version has:

USB interface
Socket for our temperature probe
ASCOM focuser driver software
Software application to configure and control the focuser

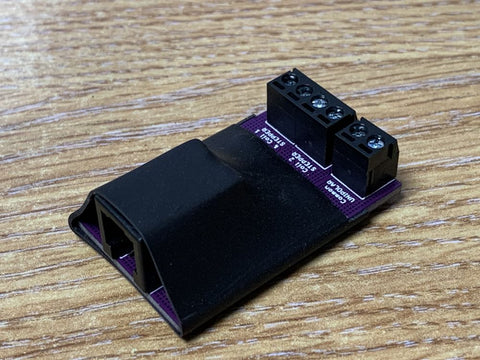

Ability (with optional adaptor) to control stepper motor focusers as well as DC motors

It allows you to focus the telescope remotely from up to 20m away, without any trailing wires that will always wobble the telescope a little while you are trying to focus.

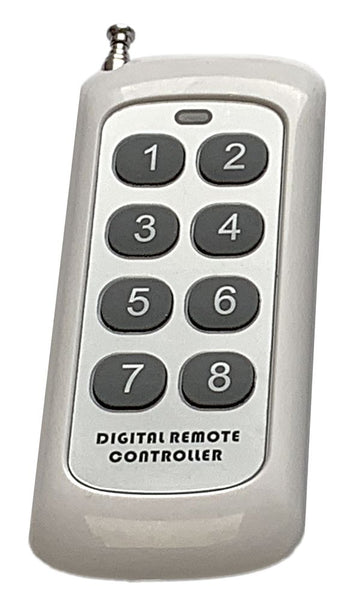

Extremely simple operation with 8 buttons arranged in 4 rows of 2. The top 3 left buttons turn the focus one way and the top 3 right right buttons turn it the other way. The buttons at the top are slowest, down to the fastest ones at the bottom. Buttons 7 and 8 select "Continuous" or "Step mode".

Also consider using our Short Cable instead of the stock Skywatcher autofocus cable

A short customer video of the FocusRF is >HERE<

Specification:

DC Jack (2.1mm, centre positive) for 12V external PSU (not included)
Outputs via RJ22 connector
Reverse polarity protected
Operating voltage range: 9V to 14V
Current in standby: 28mA
Maximum motor drive current: 1A
Red indicator (slow flash) for power on
Green indicator for RF activity
Dimensions: 66 x 66 mm

In the Box:

Focus RFU unit
Remote controller
USB A to B cable
DC Jack Splitter cable
DC Jack Extension cable

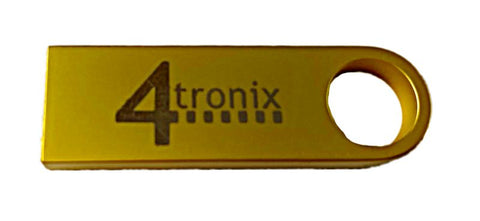

USB Memory stick with software, user guide, etc
