N20 Micro Metal Geared Motor 6V Various Speeds
Regular price
(inc VAT)
Only 8 left!
Micro Metal Geared Motor
As used in our CrumbleBots and Bit:Bots (240rpm)
NB: Use 240rpm for CrumbleBot, MiniBit and BitBot (classic or XL) replacements
Simple to use, low starting voltage around 2V. Nominally speed is on load (with wheel) at 6V and around 160mA off load
Also available - nylon mounting bracket with screws

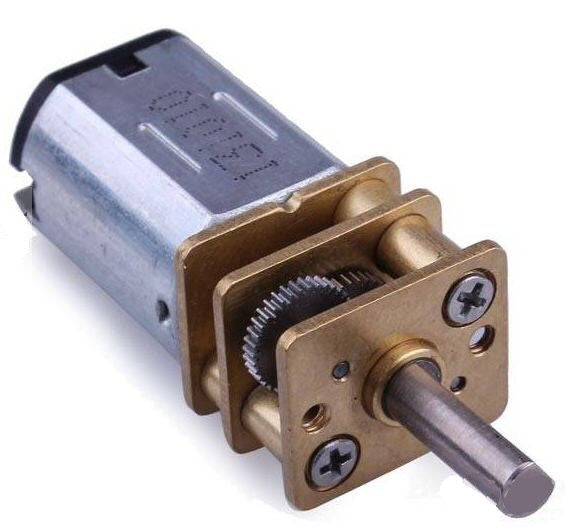

N20 size motor.
| Volts | No Load RPM |
On Load RPM |
Torque kg.cm |
Rated mA |
Stall Torque |
Stall mA |
Ratio |
|---|---|---|---|---|---|---|---|
| 6 | 500 | 400 | 0.15 | 160 | 1.2 | 100 | 30 |
| 6 | 300 | 240 | 0.2 | 160 | 1.6 | 100 | 50 |
| 6 | 150 | 120 | 0.3 | 160 | 2.4 | 200 | 100 |
| 6 | 100 | 80 | 0.4 | 160 | 3.2 | 200 | 150 |
| 6 | 60 | 48 | 1.0 | 120 | 7 | 200 | 250 |
| 6 | 50 | 40 | 1.5 | 120 | 10 | 300 | 298 |
